400/230V Jinan 500kw Biogas Generator 500GF1-Nk with Rated Frequency 50Hz

Model NO. : 500GF1-NK

Standard : Standard

Rated Frequency(Hz) : 50

Model of Engine : 12V190zdldz-2

Rated Power(Kw/kVA) : 450/562.5

Rated Voltage(V) : 400/230

Overall Dimension(mm) : 5120*2200*2312

Net Weight : 11300

Transport Package : Standard Export Wood Case

Specification : 12V190

Trademark : Jinan jichai/Chidong/Shengdong

Origin : China

Supply Ability : 50000 Pieces/Year

After-sales Service : Permanent

Warranty : 1 Years

Output Type : AC Three Phase

Gas Source : Biogas

Certification : ISO9001

Power : ＞200kW

Customization : Available | Customized Request

Place of Origin : china

MOQ : 1

Price : 10-1000

Packaging Details : Wooden box and carton packaging

Delivery Time : 15 days

Payment Terms : TT,western

Contact Now

We, Jinan Guohua Green Power Equipment Co.Ltd. is a high-technology sales and service company of Jinan Diesel Engine Co.Ltd. The company was established in 2010 and has formed a complete sales and after-sales service system for 190 series engines.

Our main business:

Early period: consulting, design, supply and installation of engine power generation equipment, including diesel power generation, natural gas power generation, coal gas power generation, biogas power generation and parts.
Mid-period: supply Jinan diesel engine (Jichai/Chidong brand) accessories. GUOHUA has two warehouses. One is located in ShanDong province and mainly supplies the domestic North, South markets and foreign. The other is located in XinJiang province and mainly supplies the western market, which allows fast delivery and quality assurance.
Later period: The company also provides engine overhaul and maintenance services with experienced engineers and professional skills. Traces of JNGH can be seen not only in China, but also in Ghana, Kazakhstan, Vietnam and Myanmar. Provide overhaul and maintenance services later.

Compression ratio of the gas generator is 8:01, No.and layout of clinders is 12,60°Vee.
The main technical data is as follows:

Model of genset	500GF1-NK
Model of engine	12V190ZLDZ-2
Rated Power(KW/KVA)	500
Rated Frequency(HZ)	50

400/230V Jinan 500kw Biogas Generator 500GF1-Nk with Rated Frequency 50Hz

Founded in 2010, JiNan GuoHua Green Power Equipment Co.Ltd. covers an area of 5,000 square meters. Now as a generator sets company that incorporates research and development, manufacture as well as sales, we have established stable supply and marketing relationships with clients from 32 provinces and 20 countries.

Spare parts for 12V190
No.	Part Name	Part Number	Qty
1	CYLINDER BLOCK ASSEMBLY		1
			1
3	CYLINDER HEAD ASSEMBLY	127.03.00	12
4	OIL SUMP ASSEMBLY	12VB.04.00B	1
5	PISTON AND CONNECTING ROD ASSEMBLY	127.05.00	12
6	CAMSHAFT AND GEAR TRAIN ASSEMBLY	127.06.00	1
7	TORSIONAL VIBRATION DAMPER ASSEMBLY	12VB.07.00	1
8	INTAKE LINE ASSEMBLY	127.08.00B	1
9	EXHAUST LINE ASSEMBLY	127.09.00A	1
11	NATURAL GAS PIPELINE	127.14.00	1
12	MEGNETO TRANSMISSION ASSEMBLY	127.15.00	1
13	OIL PUMP ASSEMBLY	12V.17.00C	1
14	OIL FILTER ASSEMBLY	12VB.18.00B	1
15	CENTRIFUGAL FILTER ASSEMBLY	12VB.19.00	1
16	LUBRICATING PIPING	127.20.00	1
17	OIL COOLER ASSEMBLY	12VB.21.00	1
18	WATER PUMP ASSEMBLY	12VB.22.00B	2
19	Cooling line system	127.24.00	1
20	INTER-COOLER ASSEMBLY	12V.27.00	1
21	HAND PRIMING OIL PUMP ASSEMBLY	12V.29.00	1
25	OVERSPEED SAFETY DEVICE	12VB.37J2.00	1
26	SPECIAL TOOLS	127.42.00	3
27	COUPLING ASSEMBLY	163.44.00	1
29	ELECTRIC STARTING SYSTEM	127.46D.00	1
30	OIL PUMP BRACKET ASSEMBLY	12VB.48.00	1
31	CARBURETTER ASSEMBLY	127.86.00	2
32	NATURAL GAS PRESSURE REGALATING VALVE	127.87.00	1
33	GOVERNOR CONNECTION ASSEMBLY	127.89.00	1
35	Electromagnetic valve	127.91.00	1
36	TURBOCHARGER ASSEMBLY	127.20GJ.00EB	2

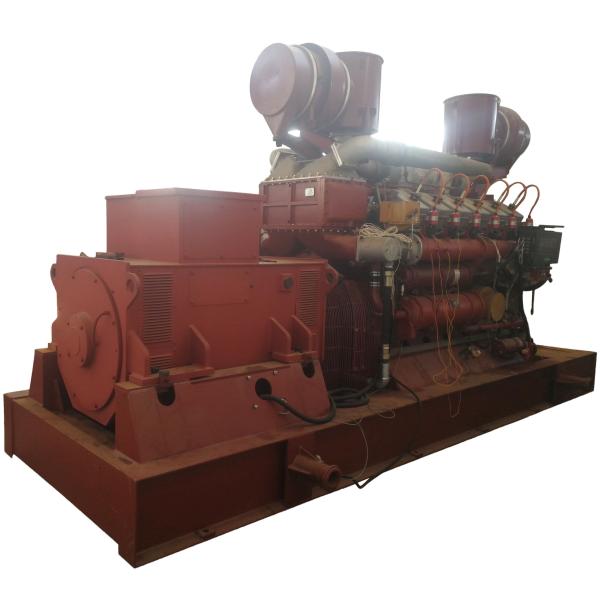

400/230V Jinan 500kw Biogas Generator 500GF1-Nk with Rated Frequency 50Hz Images
